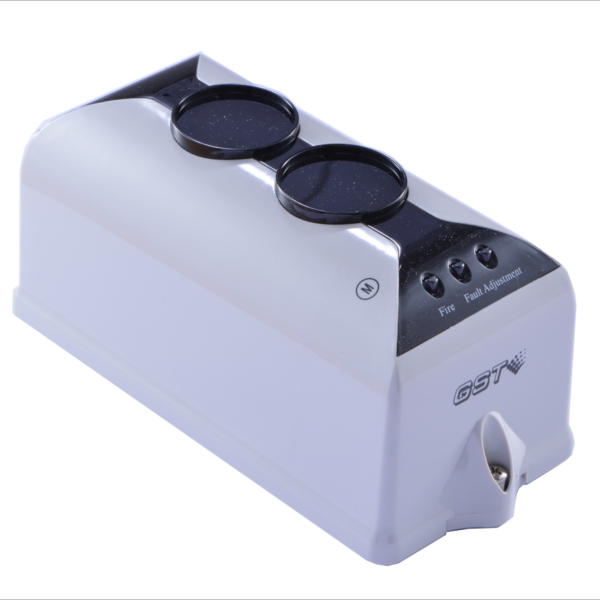

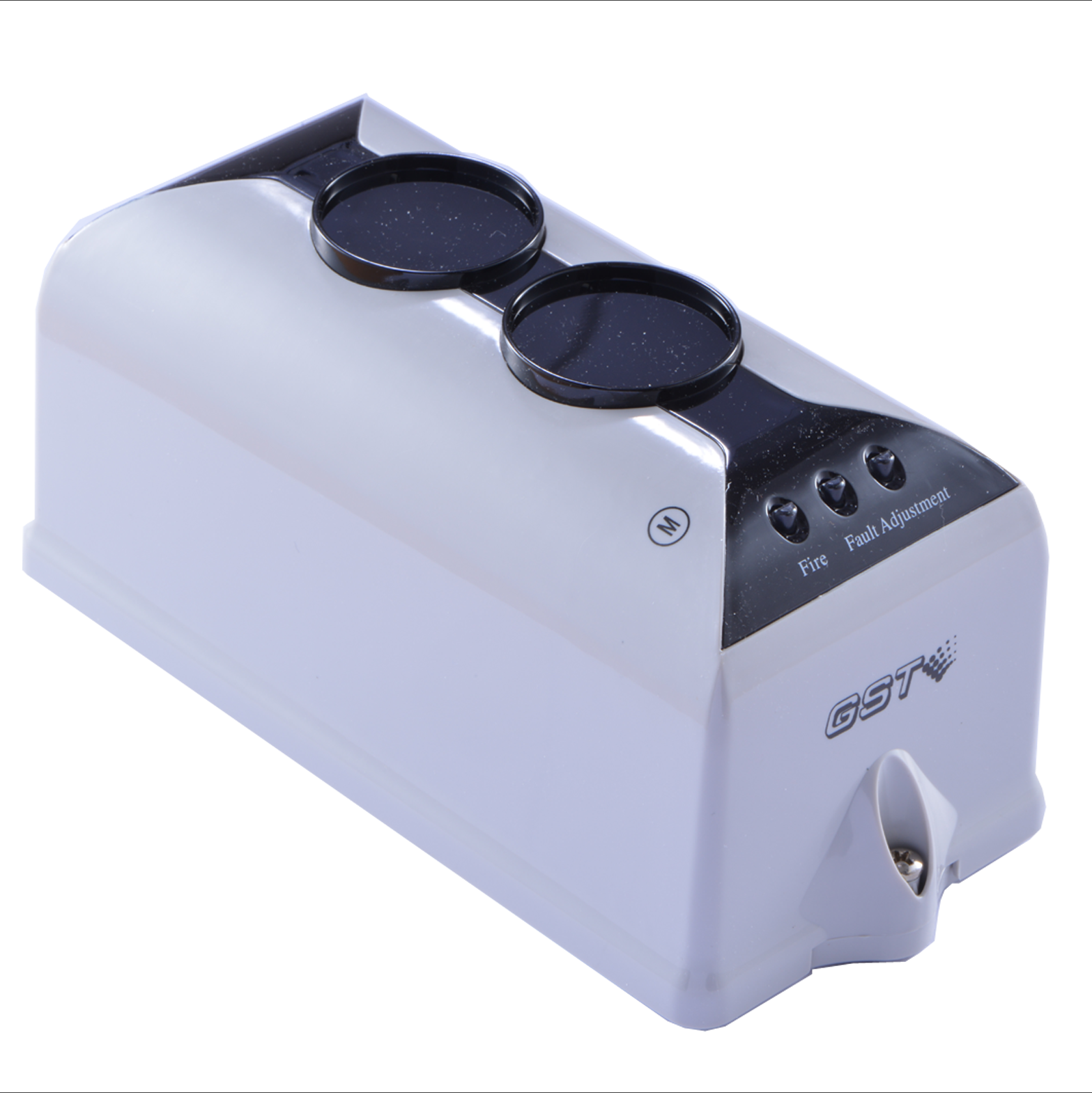

GST I-9105R Intelligent Reflective Beam Detector

Download PDF

GST I-9105R Intelligent Reflective Beam Detector is addressable reflective infrared beam smoke detector that can be used as Addressable or Conventional. With excellent built-in microprocessor, the detector can carry out system adjustment, drift compensation of ambient data, and judgment of fire and fault through fixed algorithm. The sensitivity of the detector can be set through hand held programmer in field, to suit different application conditions.

Operating Voltage                                       Loop 24VDC (15V~28V)

Commission current                                  ≤20mA

Standby current                                          ≤12mA

Alarm current                                              ≤22mA

Loop Voltage                                              24V (15V~28V)

Angle of Adjusting                                     –6° ~ +6°

Maximum Angular Misalignment         ±0.5°

Sensitivity Level                                         Level 1: 1.6dB       Level 2: 2.3dB

Length of Optical Pathway                       8m~100m

Material and Color of Enclosure             ABS, Gray

Dimensions                                                  206mm X 95mm X 95mm

Weight                                                             450g
