Program PE-GA2000

Download PDF

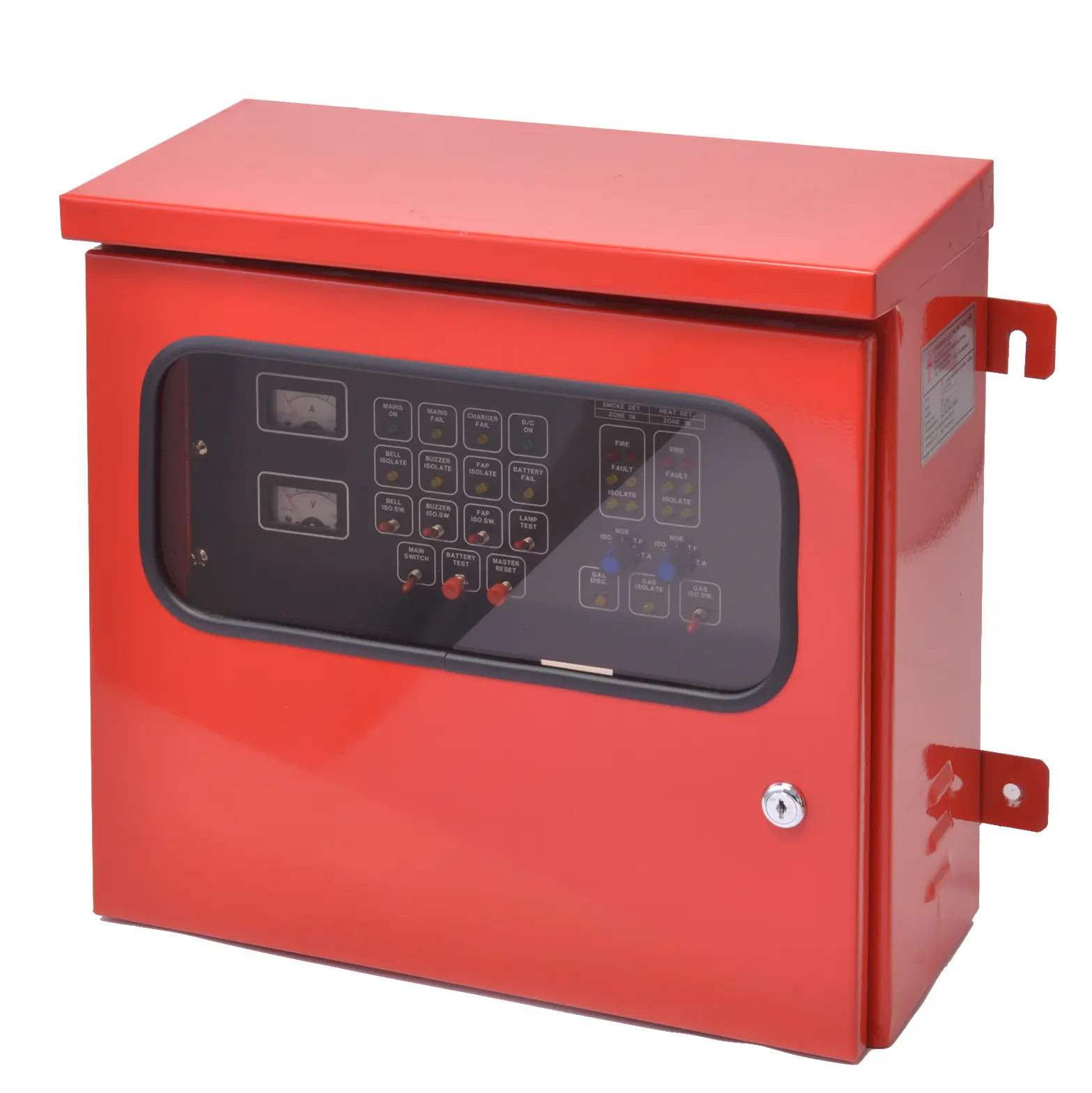

Program Auto Gas Releasing Control Panel GRP 200/400 Series manufactured in accordance to MS 1745-2 : 2004 and conformed to local CIFS requirement.

PE-GRP 200/400 series is a micro processor programmable user friendly control panel with a digital ammeter, voltmeter and a countdown timer displayed on the front panel. Count down timer is pre-set for 30 seconds upon two (2) activated zone. Timer can be program to required specification.

Built-in power pack with an intelligent charger which allow to charge up a set of complete flat 24 volts battery and automatically cuts off charging once battery fully charge.

This controls and indications are housed in a compact enclosure finished with signal red polyester epoxy powder paint. Indoor and outdoor type of enclosure are available.

STANDARD FEATURES

  • Power Source Indicators
  • Power Failure Indicators
  • Zone Fire, Fault and Isolate Indicators
  • Bell Isolate Switch and Indicator
  • Gas Isolate Switch and Indicator
  • Fault Buzzer Mute Switch
  • Master Reset Switch
  • Test Lamp Switch
  • Test Battery Switch
  • Earth Fault Supervisory
  • Built-in Delay Discharge Timer (Programmable)

NEW FEATURES

  • GAS Abort Function (Optional)
  • Digital Voltmeter & Ammeter
  • Intelligent Battery Charger
  • Digital Countdown Timer
  • Common Fault Contact
  • Low Pressure Indicator
