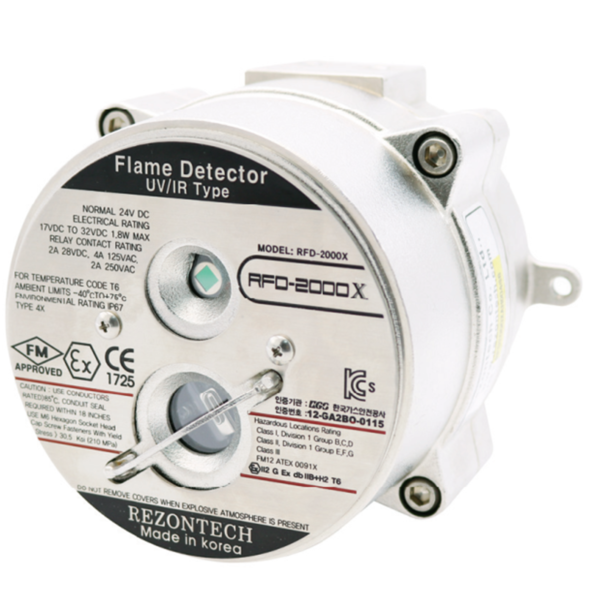

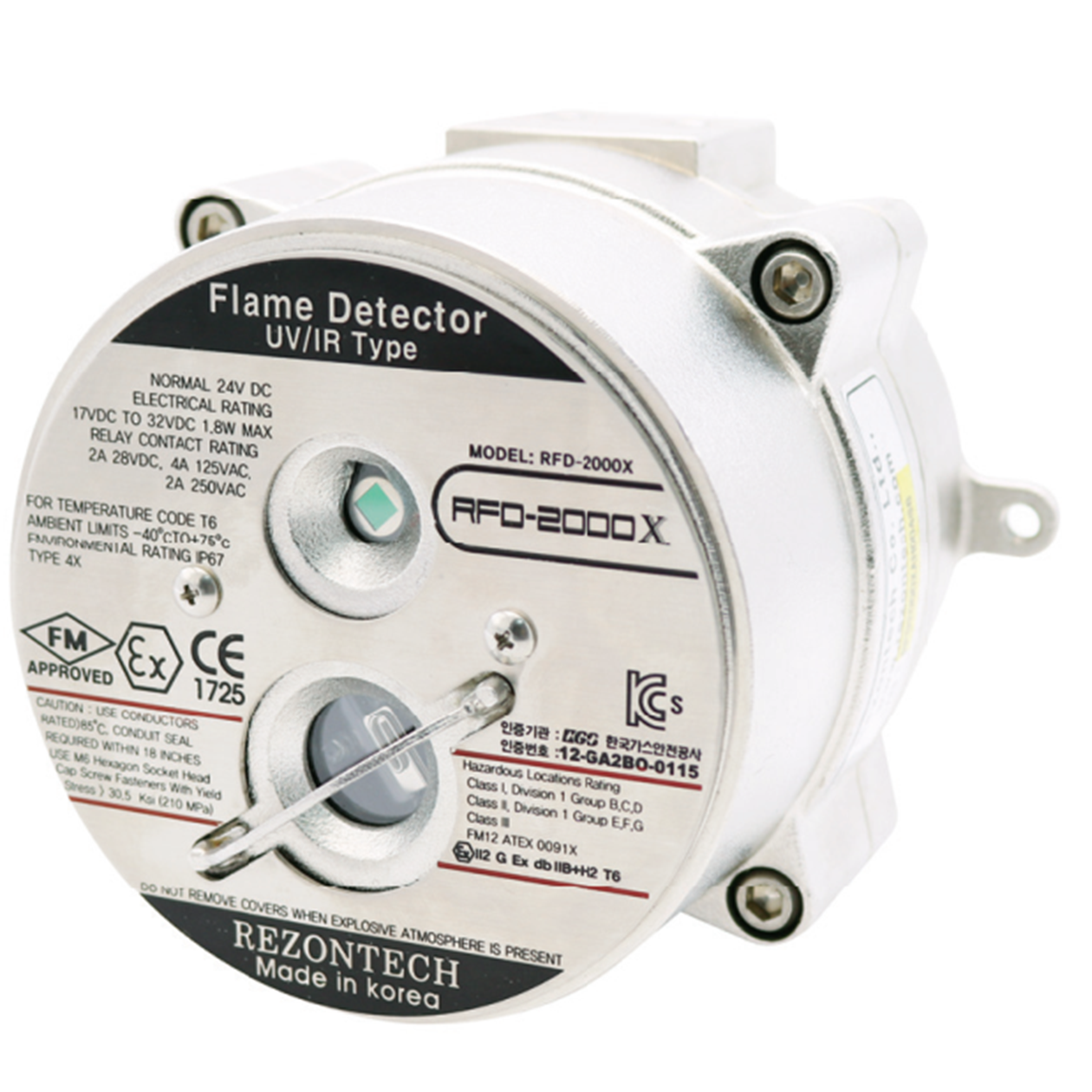

Rezontech RFD-2000X

Category:
Download PDF

Type                                                                       : UV/IR

Model                                                                    : RFD-2000X

Detection Range                                                 : 30m

Field Of View                                                       : H90° V90°

Operating Temperature Range                        : -40 °C to + 75 °C

Humidity Range                                                  : Up to 95% Relative Humidity

Enclosure Material                                             : SUS 316

Dimension                                                            : 134mm(W) x 117mm (H) c 120mm (D)

Weight                                                                   : 3.2Kg

Response Typically                                             : 5 seconds

Operating Voltage                    : 24 VDC (17VDC to 32VDC)

Power Consumption               : 1.8W maximum at 32VDC

Output                                        : Relay Contacts (Fire, Fault, Warning Alarm) 4-20mA Current Output RS-485 Proprietary Communication

Conduit Entry Size                  : 2 x ½” NPT, M20 x 1.5 inch
