ASENWARE Explosion-proof Fire Alarm Bell

Download PDF

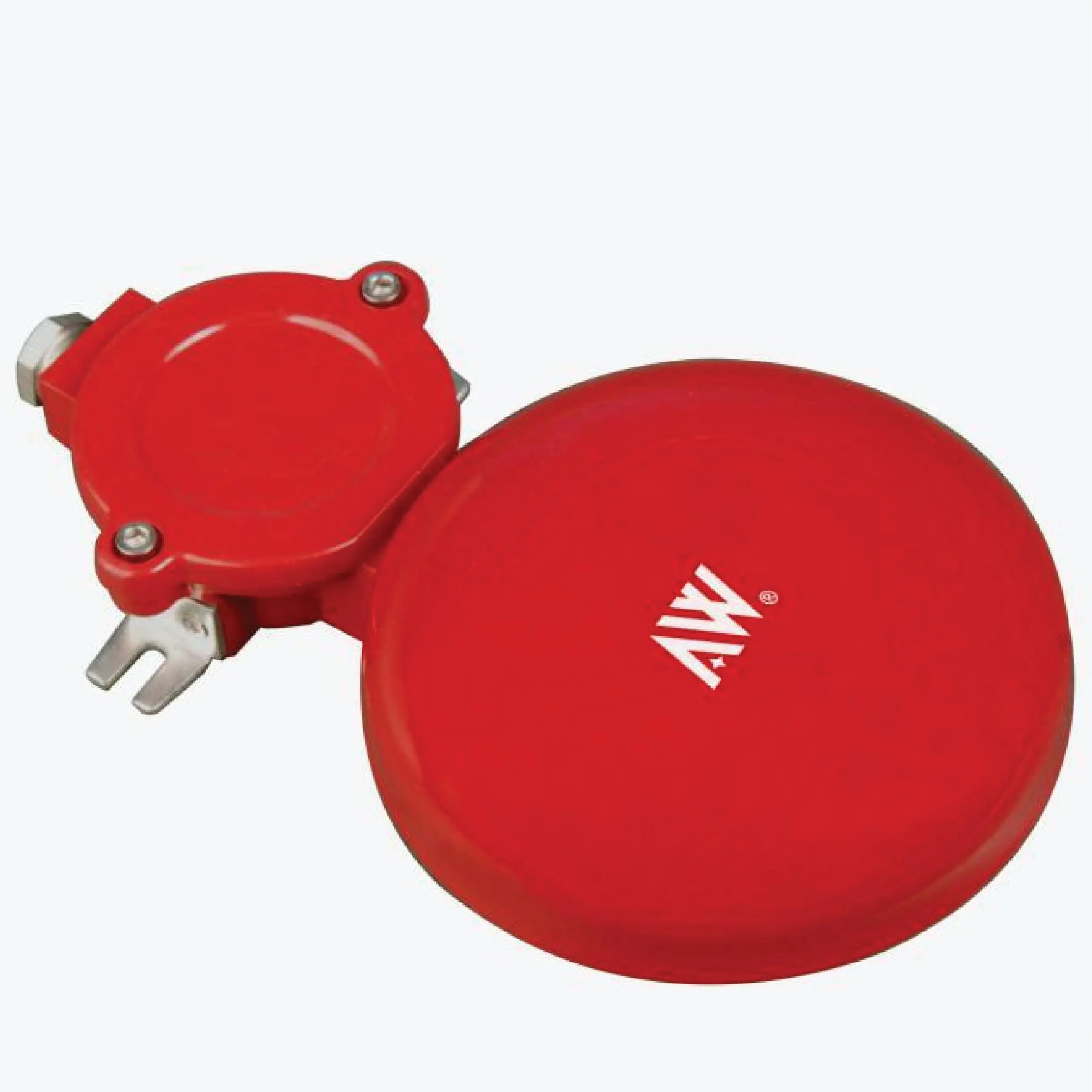

ASENWARE Explosion-proof Fire Alarm Bell, AW-CBL2166EX, is suitable for explosive gas environment with explosion-proof grade IIC (or IIB) and temperature grade T6. When a fire occurs , the control signal sent by the fire alarm controller will start the alarm .This product can also be used in conjunction with manual call point to achieve a simple sound alarm.

Main Voltage 24VDC
Operating Current Alarm≤25 mA
SPL(Sound Pressure Level) 95-100 dB
Ex-Atex Protection Level Exd II CT6 Gb/tD A21 IP66 T80°C
Protection class IP65
Environmental Temperature range: -20 to 50°C (-4~122°F)

Humidity: 5 to 95% RH, non-condensing

Materials and colors Iron Red color
Dimension 260mm x 152mm x 80mm
Weight 1.6 Kg ±
