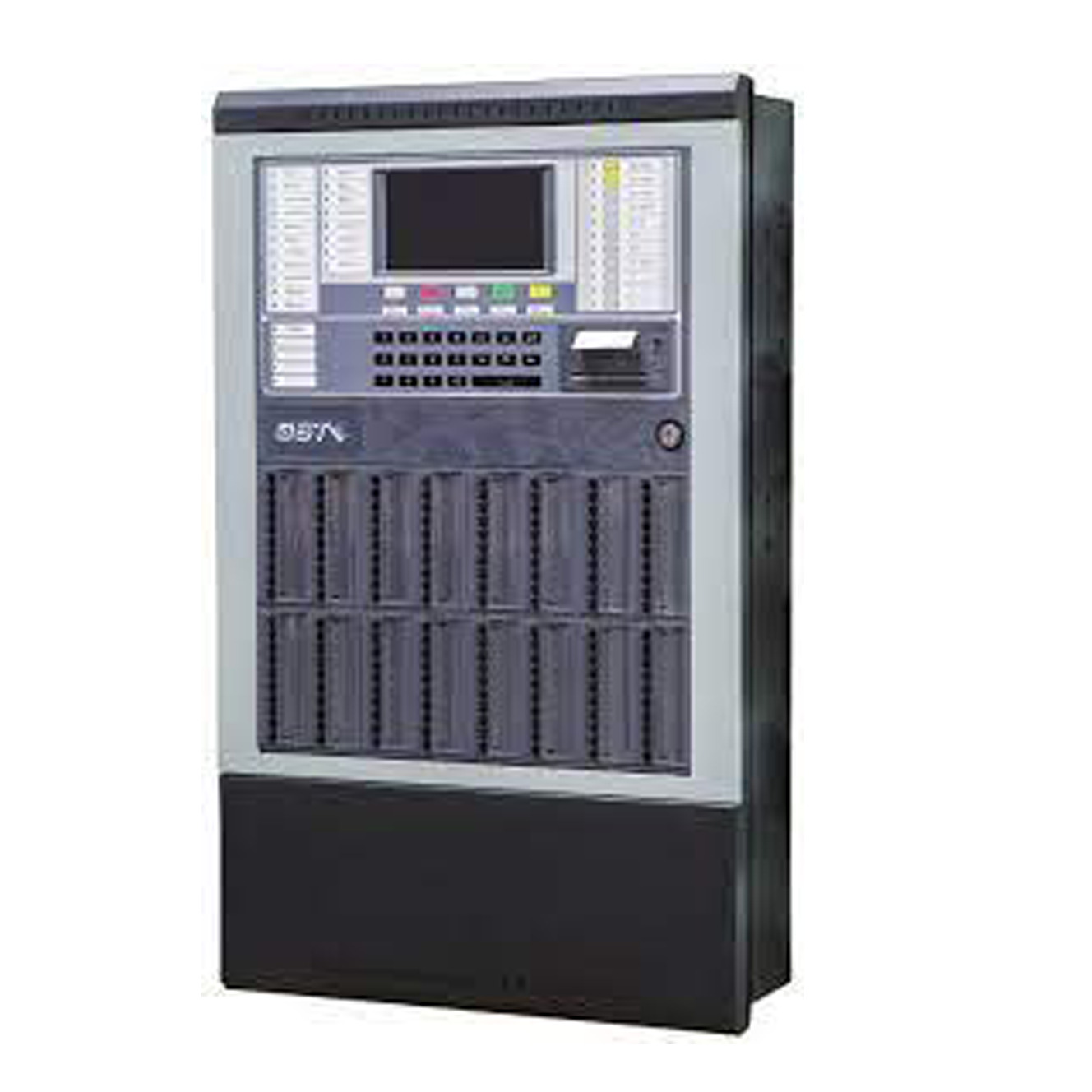

GST-IFP4M is an Intelligent Fire Alarm Control Panel (FACP) designed for medium- to large-scale facilities. It complies to UL 864 standard with features of easy installation, operation, and maintenance. The FACP integrates an ARM7-Cotex CPU with inbuilt Linux OS. Its friendly and graphical screen can be touchable in operation.

– 242 addressable devices per loop mixing various types of devices, Max. 1452 addresses

– Support up to 32 ZCP panel with individual programmable buttons & LED indicators.

– Max 8 ZCP panels for wall mount cabinet

– Password and key-protected nonvolatile memory

– History records of 100,000 events

– 2 Power Limited Class B Notification Appliance Circuits (NAC), total load Max.2.5A/24VDC. The 2nd NAC can be set as AUX

– 5 Form C relay outputs, including Alarm output, Trouble output, Supervisory output and 2 programmable outputs

– 7-inch Touch Screen 800 x 480
