Weflo Flow Switch

Download PDF

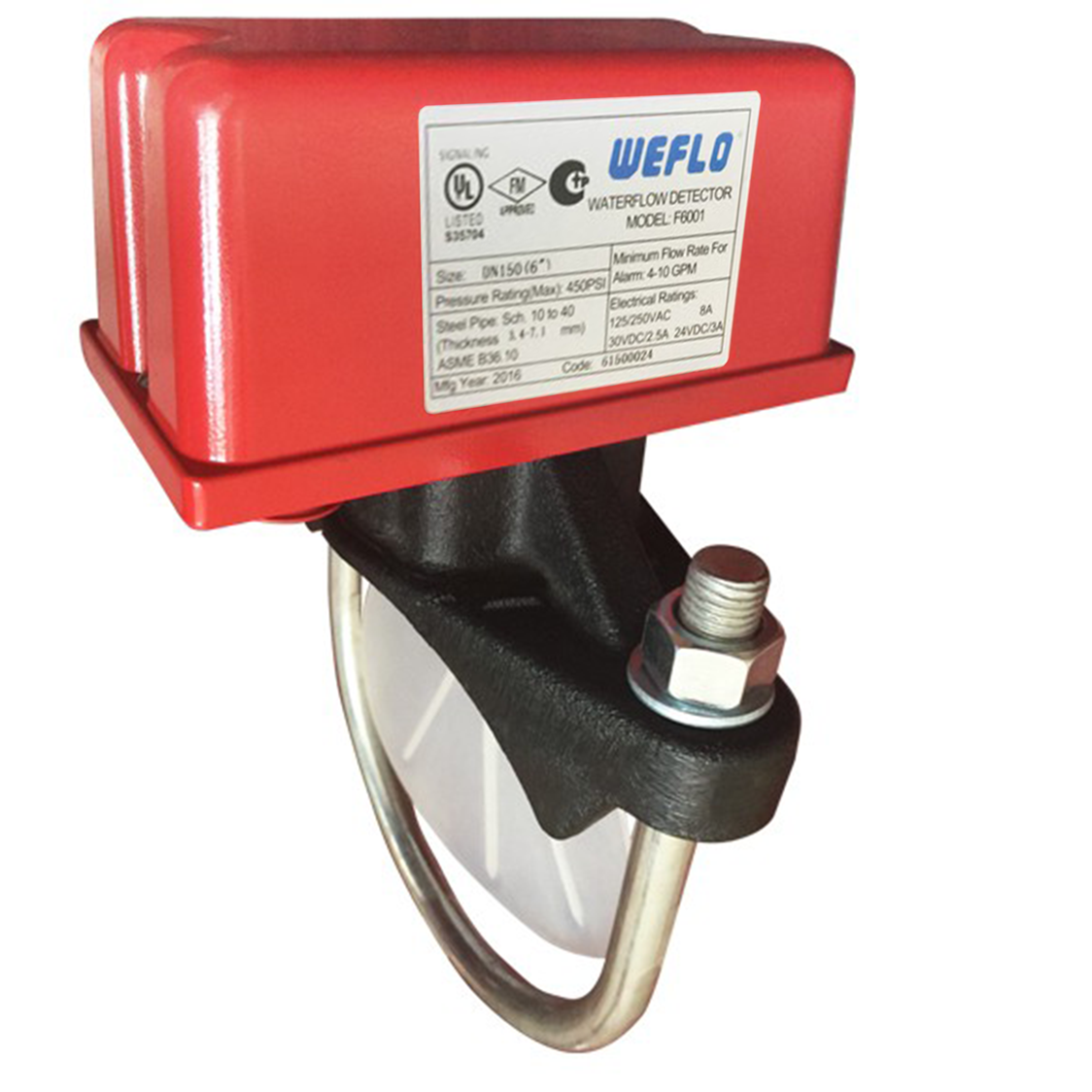

Weflo Waterflow Detector F6001 is designed for both indoor and outdoor use. It is also equipped with tamper resistant screws to prevent unauthorized entry. The two synchronized switches are enclosed in a durable terminal block. Designed and built for accuracy and repeatability.

Flow Sensitivity Range                                : 4-10

GPM Contact Rating                                    : 8A@123/250V, 3A@24VDC, 2.5A@30VDC

Working Pressure                                         : 0 °C to 68 °C

Corrosion Protection                                   : Fusion Bonded Epoxy, Coated Interior and Exterior or Enamel Spray Paint, Interior and Exterior

UL Listed and FM Approved
