GST GST200N (LPCB EN54)

Download PDF

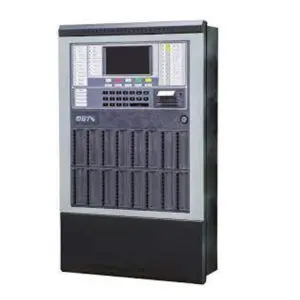

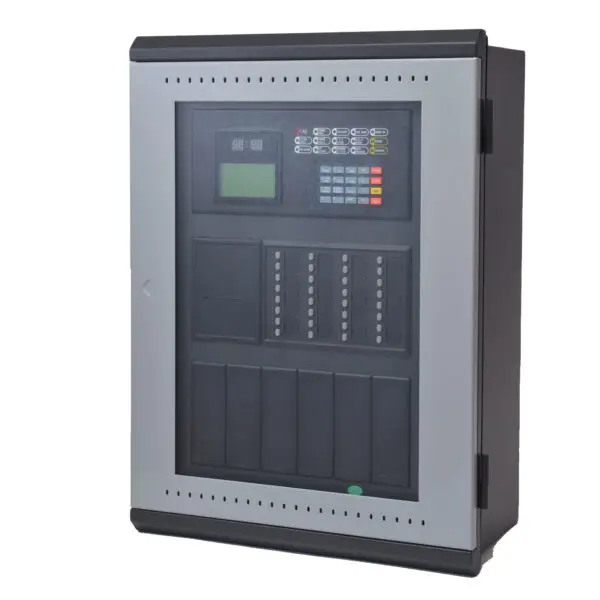

GST200N Intelligent Fire Alarm Control Panels are designed in comply with EN54-2 and EN54-4 standard (LPCB certificate No.: 548p) with qualities of simple installation, operation, and easy maintenance. 1-2 loop addressable panel is suitable for small buildings like office, restaurant, store, and shops.

GST200N Intelligent Fire Alarm Control Panels are designed in comply with EN54-2 and EN54-4 standard (LPCB certificate No.: 548p) with qualities of simple installation, operation, and easy maintenance. 1-2 loop addressable panel is suitable for small buildings like office, restaurant, store, and shops.

  • 242 addressable devices per loop mixing various types of devices, Max. 1452 addresses
  • Support up to 32 ZCP panel with individual programmable buttons & LED indicators. Max 8 ZCP panels for wall mount cabinet
  • Remote diagnosis via Ethernet
  • 7-inch Touch Screen 800 x 480
  • Support 1-6 loops in Class A style (additional battery box is required for 5/6 loops)
  • Wide range power supply
  • Wall mount with glass door
  • Built-in multiple languages, currently supports English, Spanish, Portuguese and Russian
  • Programing via PC or panel keypad and touch screen
  • USB port for system configuration and firmware update
  • Password and key-protected nonvolatile memory
  • Support USB dongle for securing project database
  • History records of 100,000 events
  • “Walk test”, silent or audible
  • PAS (Positive Alarm Sequence) per point
  • Report device type mismatch and duplicated loop address
  • Optional Redundancy CPU
  • Bulit-in BACnet (Authorization code needs to be ordered separately)
  • Optional Modbus Card
  • Capability of remote downloading site specific data
  • Compatibility with System Sensor’s Bell (SSM24-6)
  • Three colors for cabinet: Gray(default), White, Red
  • CAN/Fiber Networking, Panel grouping
  • 2 Power Limited Class B Notification Appliance Circuits (NAC), total load Max.2.5A/24VDC. The 2nd NAC can be set as AUX
  • 1 Limit to non-monitored input interface
  • 5 Form C relay outputs, including Alarm output, Trouble output, Supervisory output and 2 programmable outputs
  • Built in printer and additional USB printer interface port for external printer
  • Built in protocol to voice alarm system, communicate via onboard RS232 port
