ASENWARE Conventional Fire Strobe Sounder

Download PDF

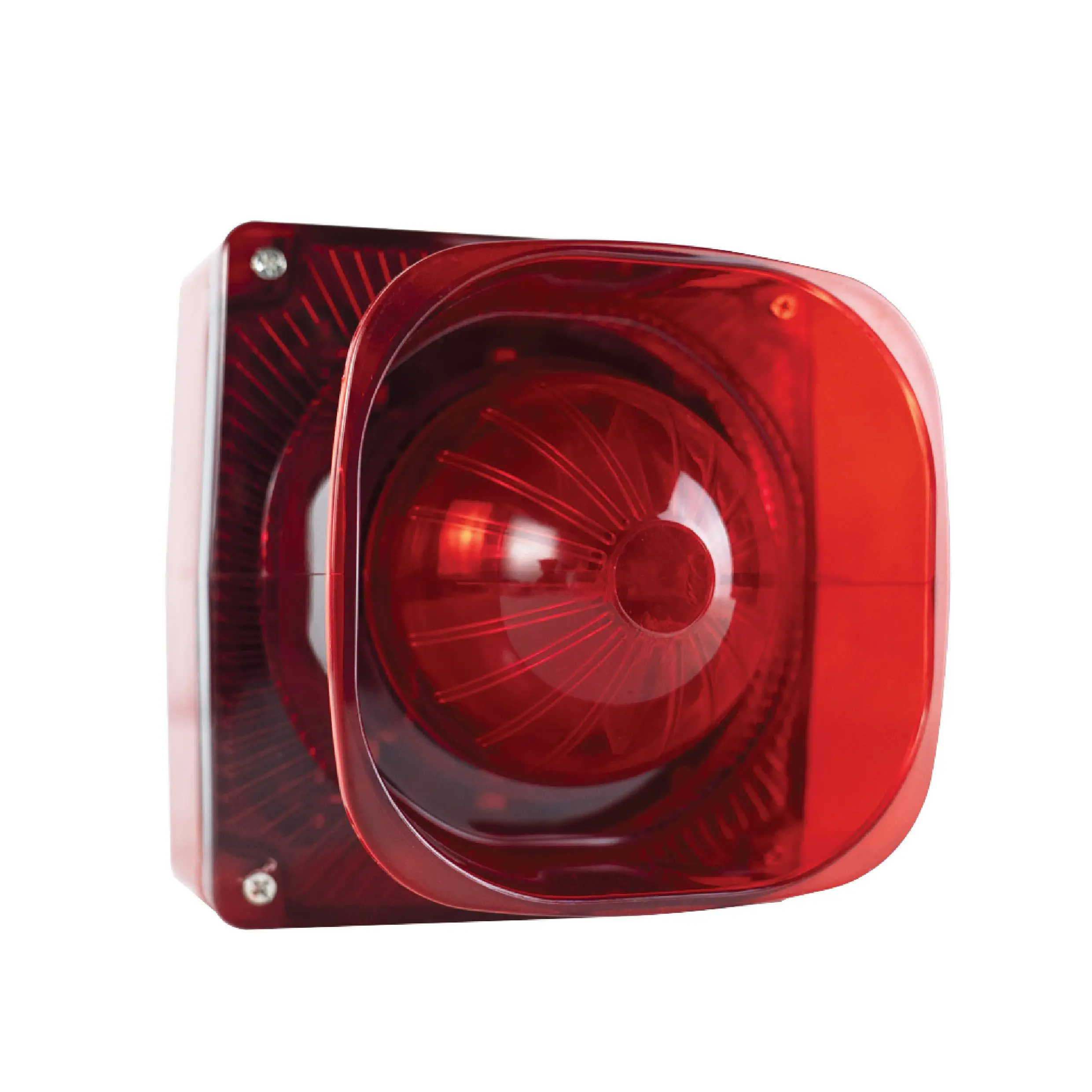

ASENWARE Conventional Fire Strobe Sounder, AW-CSS2166-4W, The product features a new folded horn design, LED technology and advanced optics, providing outstanding sound output and supplementary light indication at very low current draw. This device delivers outstanding quality, reliability and extended operational life, making it the ideal choice for a wide range of applications

Operating Voltage 12~28 VDC
Maximum Alarm Current ≤110mA @ 24 VDC
Sounder Pressure Level 95 ~ 115dB (Adjustable) @1m
Flash Period 120 times/min
Wiring The promise of two bus system(BELL+, BELL -)
Environmental Temperature range: -10 to 50°C (14~122°F)

Humidity: 0 to 95% RH, non-condensing

Materials and Colors ABS, Red
Mating Host Asenware Conventional and Addresssable Panel
Dimension 128mm x 122mm x 100mm
Weight 320g
