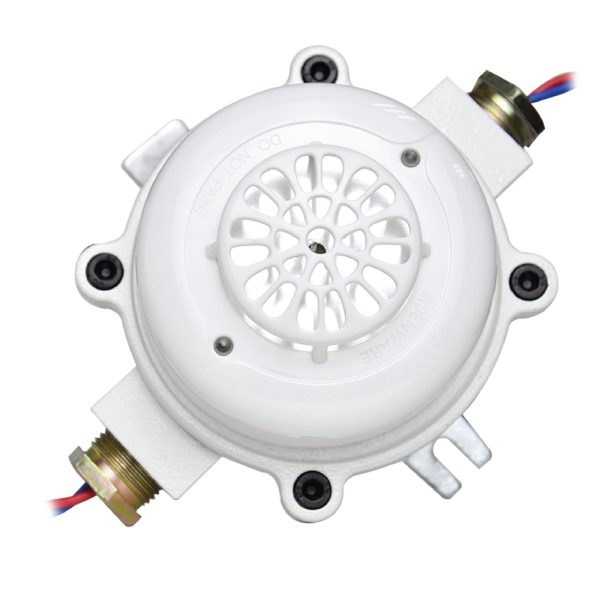

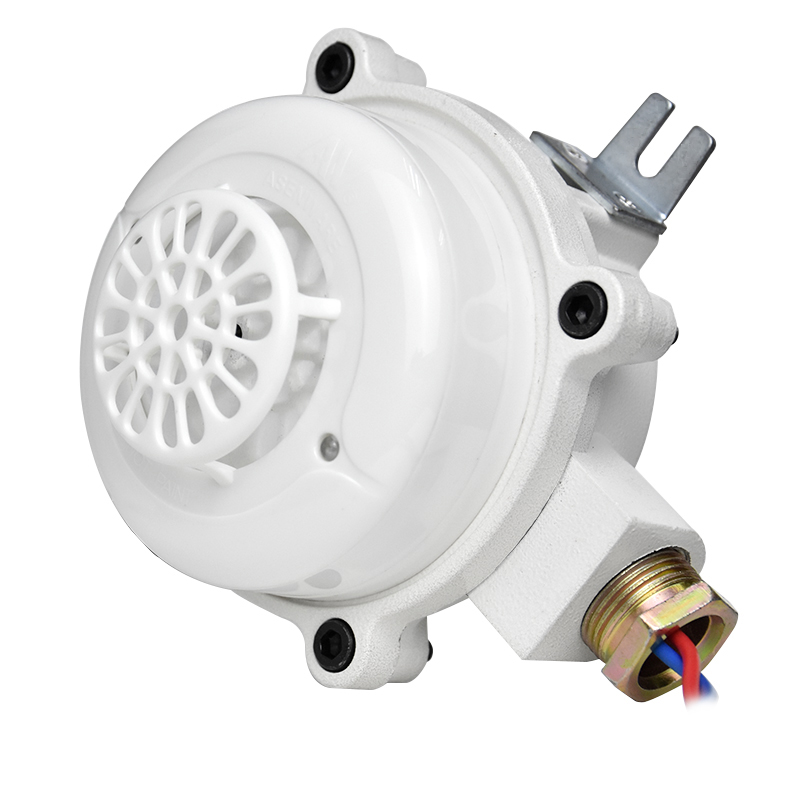

ASENWARE Explosion-Proof Conventional Rate of Heat Detector

Download PDF

ASENWARE Explosion-Proof Conventional Rate of Heat Detector,  AW-CTD382EX  is suitable for hazardous locations which include the explosive gas environment. The AW-CTD382EX conventional rate of rise heat detector uses thermal components to detect the temperature in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value. This detector can be used with the conventional fire alarm panel

Main Voltage DC24V± 3V (no polarity)
Operating current Monitor: 60µA
Alarm: ≤30mA
Alarm Relay Output Normally Open and Closed
Fix Temperature Alarm 57℃ (135°F)
Rate of Rise Alarm 7.1℃/5S
Ex-Atex Protection Level Gb/ExibDtDA21IP65T85
Materials and colors CAST IRON, ABS, White
Mating Host AW-CFP2166 fire alarm control panel
Outlet Interface G20
Environmental Temperature range: -10 to 50°C (14~131°F) Humidity: 5 to 95% RH, non-condensing
Size 150mm* 150mm* 110mm
Weight about 1.2kg
Bus quiescent current ≤400μ A
Bus quiescent current Outlet thread 2-G3/4
Alarm confirmation light red, flashing during inspection, always on when alarm
Atmospheric pressure 80kPa~110kPa
