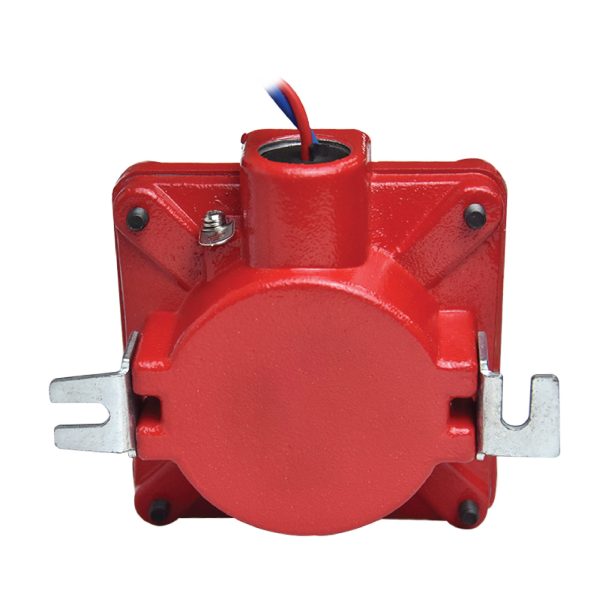

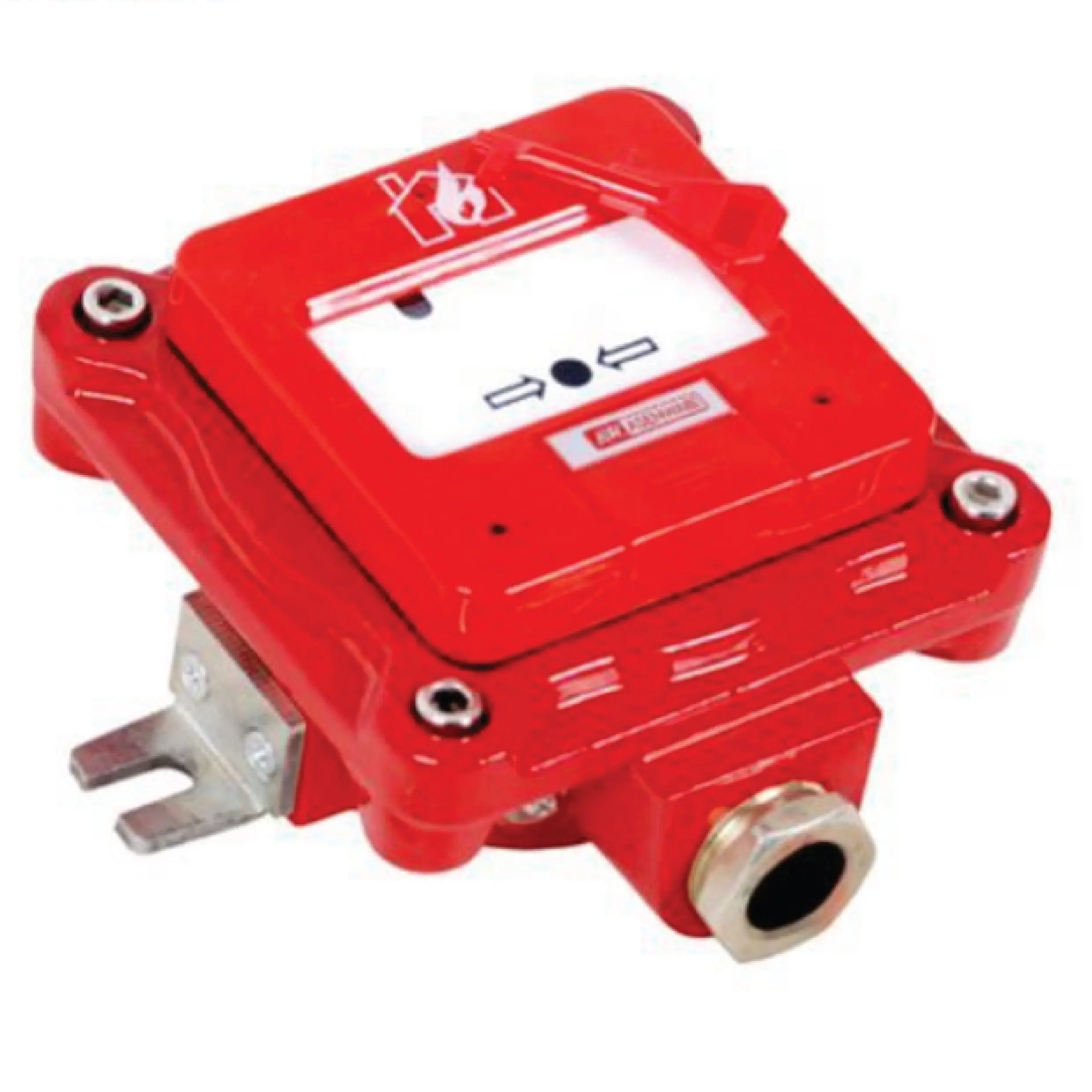

ASENWARE Explosion Proof Manual Call Point

Download PDF

ASENWARE Explosion Proof Manual Call Point, AW-D135EX has excellent explosion-proof performance. It is suitable for hazardous locations which include explosive gas environment. Upon fire detection, simply press on the designated button, it will send the alarm signal to fire alarm panel.


Voltage DC24V
Alarm Current 10mA
Indicator Standby: Green
Alarm: Red
Alarm Out Normal Open
Ex-Atex Protection Level Exd II CT6
Mating Host AW-CFP2166 fire alarm control panel
Outlet Thread G20
Environmental Temperature range: -20 to 50°C
Humidity: 5 to 95% RH, non-condensing
Materials and colors Cast Iron, ABS, RED
Size 135mm x 130mm x 64mm
Weight 1kg ±
