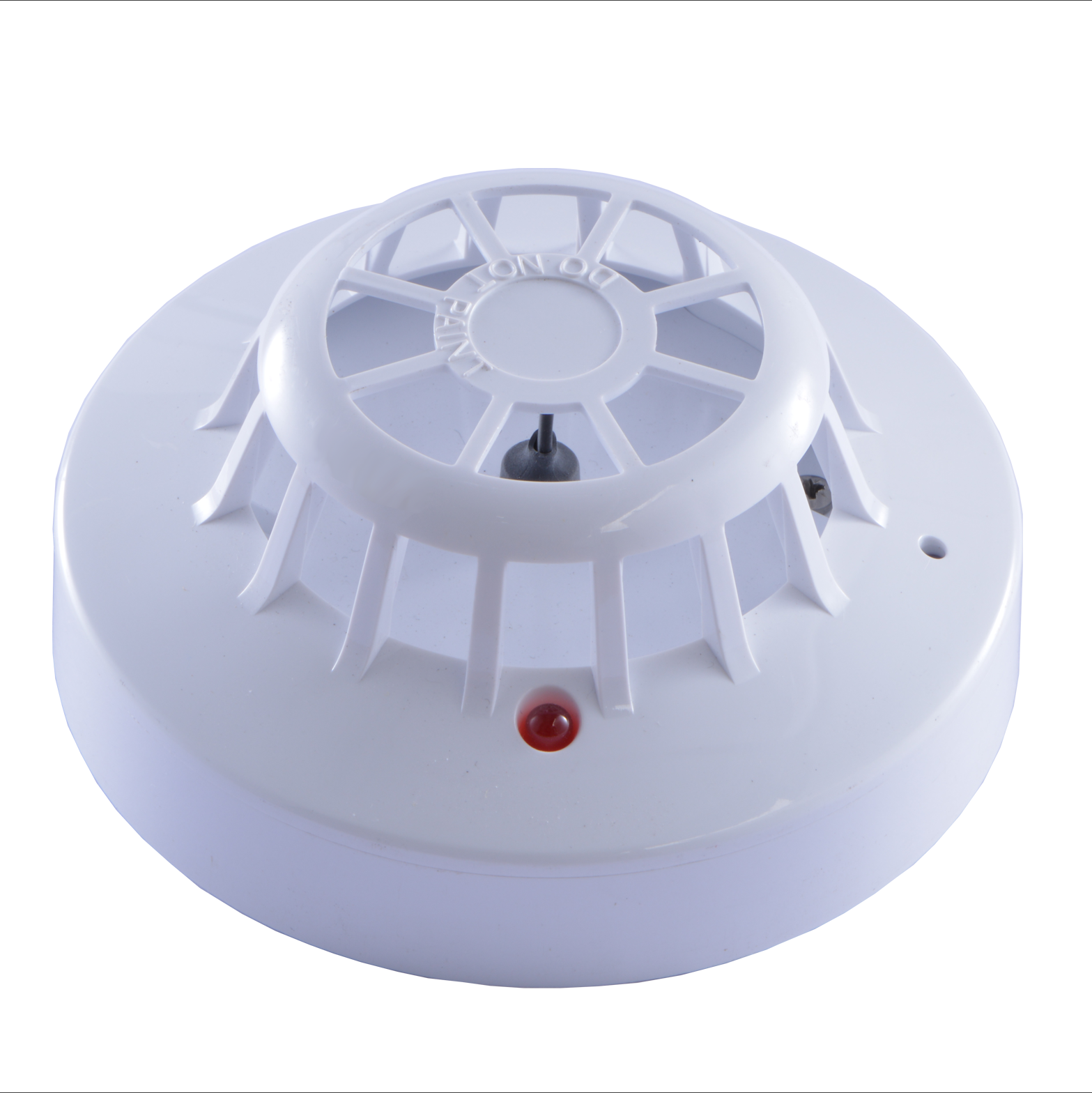

Apollo Series 65A 170F Heat Detector

Download PDF

The series 65A 170F Heat Detector monitors temperature by using a dual thermistor network providing a voltage output proportional to the external air temperature. The nine detectors in the Series 65A range are designed to suit a wide variety of operating conditions.

Supply Voltage                9 -33 V DC

Surge Current                  0 mA

Alarm Current                 17mA at 9 V, 52 mA at 24 V

Dimensions                      100mm(Ø) x 42mm(H)

Net Weight                        80g

Material Housing            White flame-retardant polycarbonate

Material Terminal           Nickel plated stainless steel
